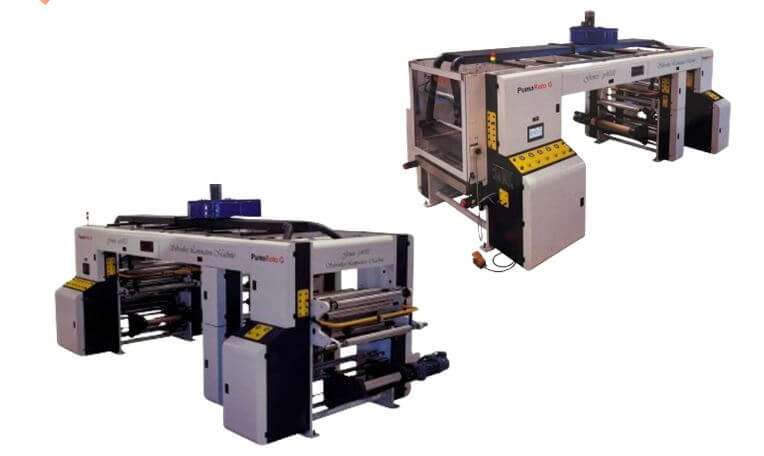

Tech. Spec. | Genex PS 4000(Solventless Lamination) |
---|---|
Machine Speed | 500 mtrs/min. |
Max. Working Width | 1000 mm / 1100 mm / 1300 mm |
Max. Roll Weight | 800 kgs / 1000 kgs |
Type of Winder | Shaftless Chucking on Linear Bearing |
Substrates Loading | Using Trolley |
Unwind Core Dia | 3" & 6" |
Max. Rewind Roll Dia | 800 mm |
Substrates | PET, BOPP, LDPE, Foil & Metallizer |
Heating Media | Not applicable |
Roller Heating | Water |
Tension Feedback | Loadcell & Dancer |
Dosing Unit | Included (Make Optional) |

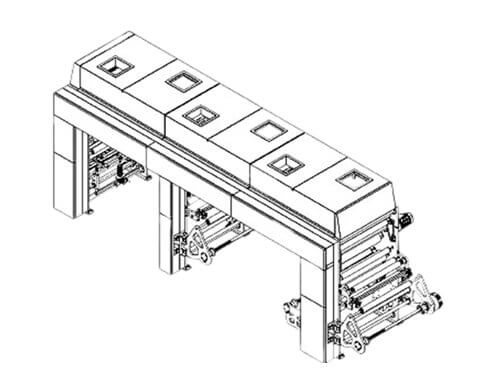

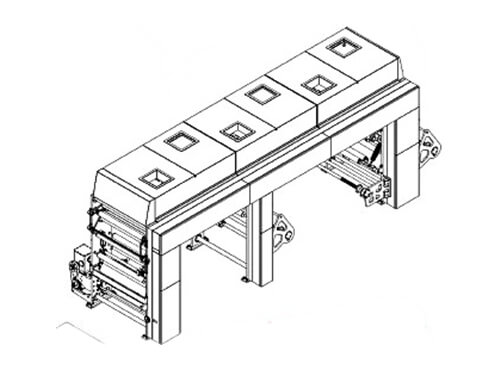

Tech. Spec. | PSB 2000 (Solvent Based Lamination) |
---|---|
Machine Speed | 200 mtrs/min. |
Max. Working Width | 1100 mm / 1300 mm |
Max. Roll Weight | 800 kgs |
Type of Winder | Shaftless Chucking on LM guides |
Substrates Loading | Self (By Hydraulic) |
Unwind Core Dia | 3" & 6" |
Max. Rewind Roll Dia | 800 mm |
Substrates | PET, BOPP, LDPE, Foil & Metallizer |
Heating Media | Thermic Fluid/Hot air generator |
Roller Heating | Water |
Tension Feedback | Loadcell & Dancer |
Dosing Unit | Not applicable |
